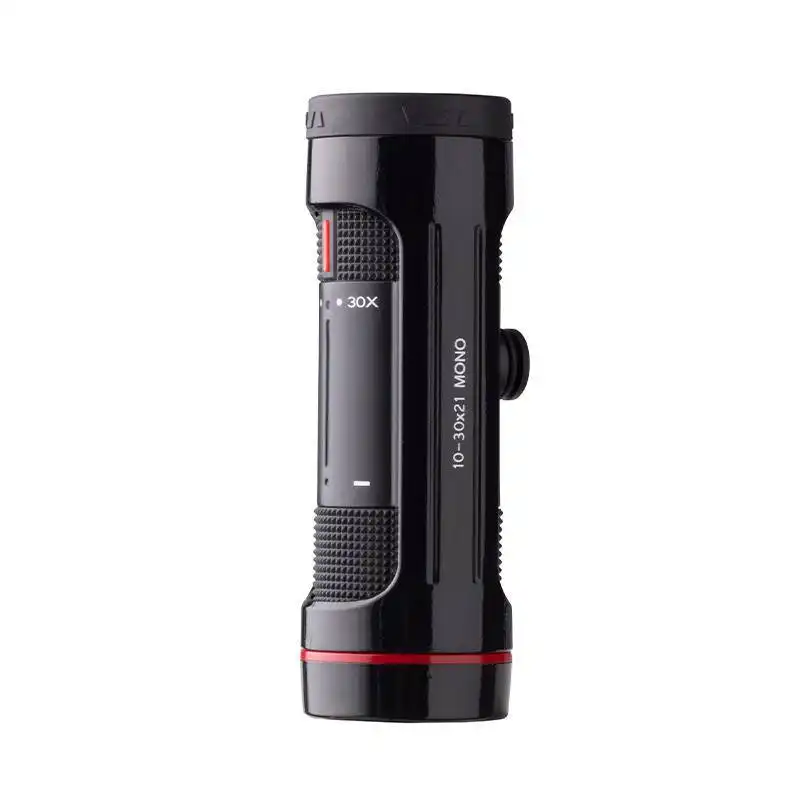

LR-ZM06 7-21X21 10-30X21 15-50x21 15-60x21 Zoom Monocular
Optical Portable Small Pocket Zoom Monocular
Perfect for Outdoor Bird Watching Golf Concerts Travel Hiking Camping Sports Stargazing
5.0
Product:
Portable Zoom Monocular
Item No.:
LR-ZM06
Model:
7-21x21mm, 10-30x21mm, 15-50x21mm, 15-60x21mm
Regular Package:
cardboard box
Price Term:
EXW (FCA/FAS/FOB/CFR/CIF/CPT/CIP/DAT/DAP/DDU/DDP are also available.)
Payment Term:
30%~50% before production, 70%~50% before shipping
Payment Method:
T/T, L/C, Paypal
MOQ:
1000pcs
Lead Time:
30-45 days
Port of Loading:
main ports of China
Customization:
color, logo and package
Accessories:
dust caps on both eyepiece and objective lens, neck strap, softbag, cleaning cloth, tripod adapter (optional)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
* Multi-Purposes: LARREX pocket monocular is ideal for various outdoor purposes, such as traveling, hiking, camping, bird or wildlife watching and sports.
* Excellent Optical System: Excellend optical system provides sharp, bright and high contrast images. Our pocket monocular provide a good viewing experience, enhancing your perception of depth when observing celestial objects. This can make observation more immersive and enjoyable.
*Zoom Magnification: Various adjustable zoom magnifications makes it easy to zoom in on target for a closer and detailed look.
* Easy Operation: Easy to be operated even by one hand.
* Portable: Small and lightweight make it portable to be carried.
PRODUCT DETAILS
OPTICAL PARAMETERS
Stargazing monoculars are compact and lightweight, making them highly portable and easy to carry during outdoor activities.
| Item No. | LR-ZM06 | Field of Angel | 4.8~2.3° |
| Model | 7-21x21 | Apparent Field of Angle | 32.7~45.7° |
| Magnification | 7-21X | Field of View | 84~40m/1000m |
| Clear Aperture | 21mm | Exit Pupil | 3~1mm |
| Prism | K9 | Eye Relief | 12~9mm |
| Ocular Lens Coating | FC | Brightness | 9~1 |
| Objective Lens Coating | FMC | Near Focus | 3m |
| Eyepiece | Twist-up | Waterproof | No |
| Item No. | LR-ZM06 | Field of Angel | 3.3~1.6° |
| Model | 10-30x21 | Apparent Field of Angle | 32.1~45.5° |
| Magnification | 10-30X | Field of View | 57~28m/1000m |
| Clear Aperture | 21mm | Exit Pupil | 2.1~0.7mm |
| Prism | K9 | Eye Relief | 11~8mm |
| Ocular Lens Coating | FC | Brightness | 4.4~0.5 |
| Objective Lens Coating | FMC | Near Focus | 3m |
| Eyepiece | Twist-up | Waterproof | No |
| Item No. | LR-ZM06 | Field of Angel | 2.2~0.95° |
| Model | 15-50x21 | Apparent Field of Angle | 33~47.5° |
| Magnification | 15-50X | Field of View | 38~16m/1000m |
| Clear Aperture | 21mm | Exit Pupil | 1.4~0.42mm |
| Prism | K9 | Eye Relief | 13.5~7.5mm |
| Ocular Lens Coating | FC | Brightness | 1.96~0.18 |
| Objective Lens Coating | FMC | Near Focus | 3m |
| Eyepiece | Twist-up | Waterproof | No |
| Item No. | LR-ZM06 | Field of Angel | 2.1~0.8° |
| Model | 15-60x21 | Apparent Field of Angle | 31.5~48° |
| Magnification | 15-60X | Field of View | 36~14m/1000m |
| Clear Aperture | 21mm | Exit Pupil | 1.4~0.35mm |
| Prism | K9 | Eye Relief | 13~6.8mm |
| Ocular Lens Coating | FC | Brightness | 1.96~0.12 |
| Objective Lens Coating | FMC | Near Focus | 3m |
| Eyepiece | Twist-up | Waterproof | No |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
FC Ocular Lens | FMC Objective Lens | Twist Up Eyepiece | Interpupillary Distance Adjustment | Zoom Ring | Focus Ring | Two-in-one Strap Hole Tripod Interface |
PACKAGING DATA
Softbag
Neck Strap
Strap On Monocular
OPTIONAL ACCESSORIES

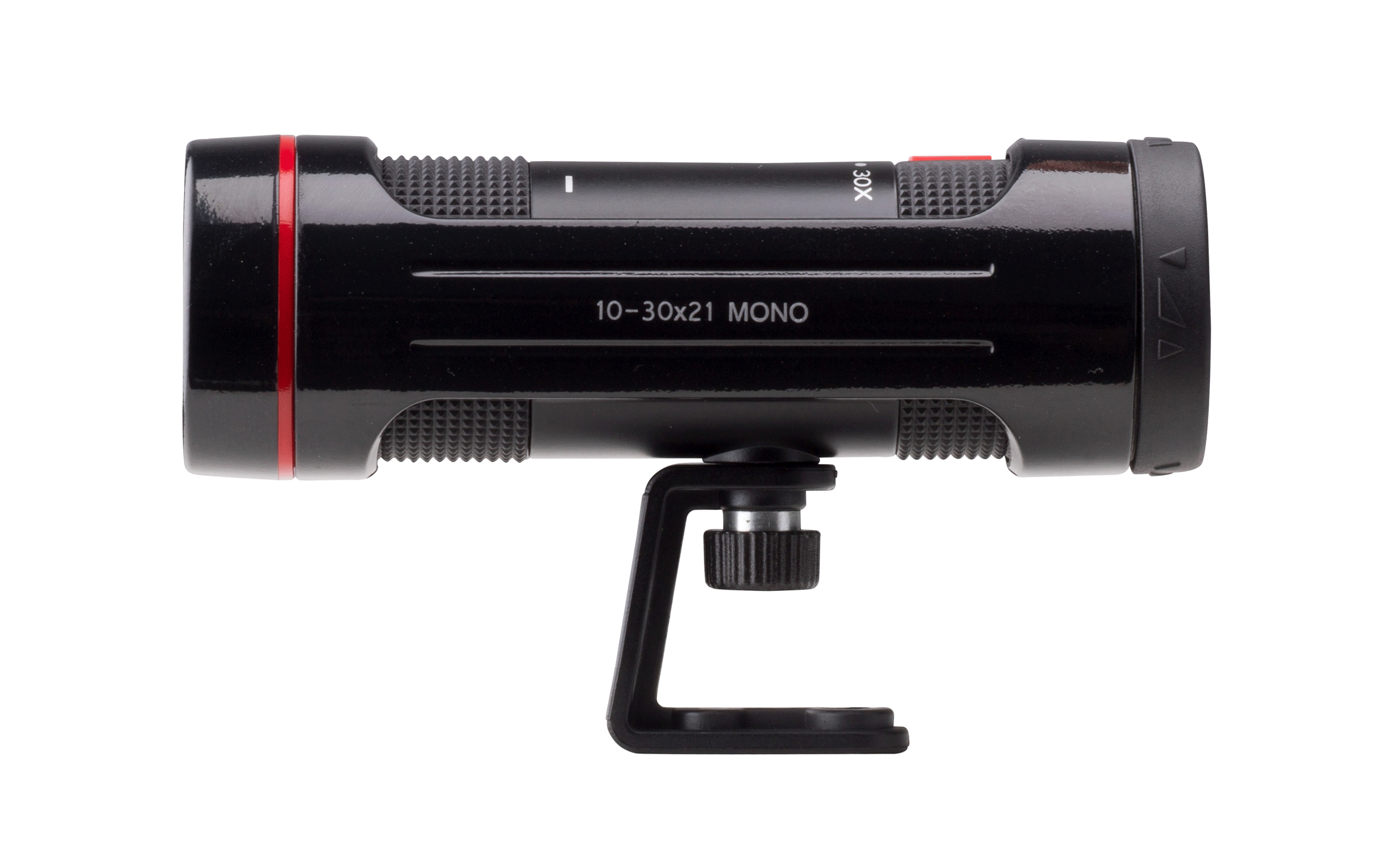

Tripod Adapter
Tripod Adapter-On

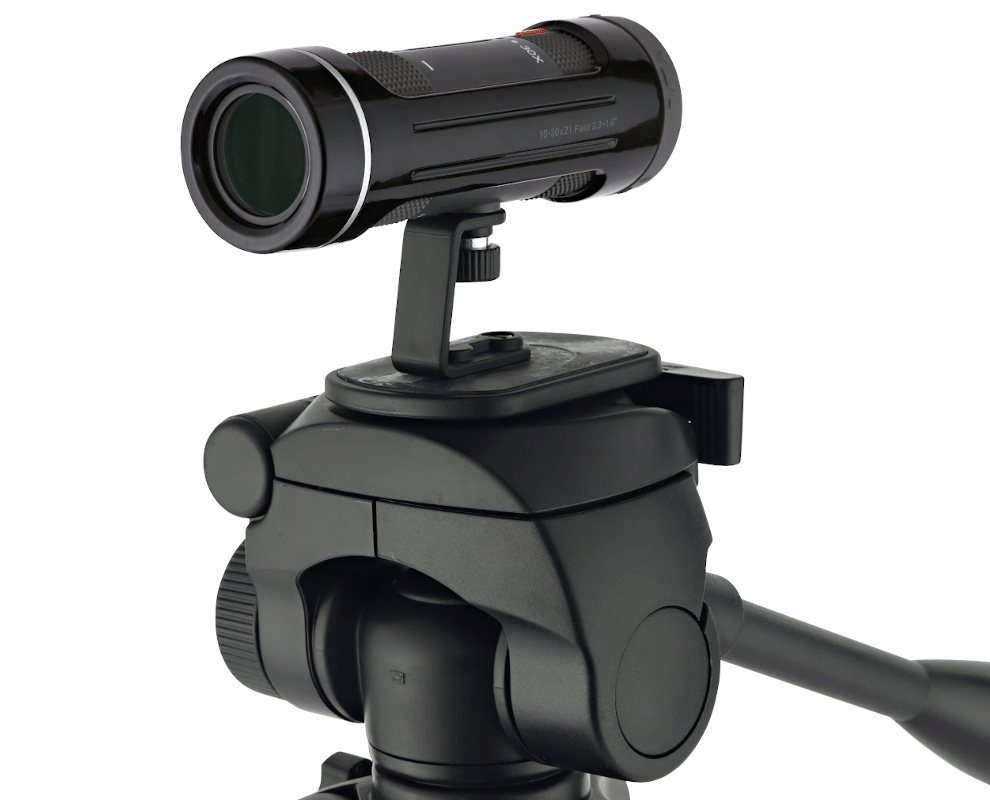

Tripod-On
LR-ZM06 | ||
Product | Dimension (WxHxD) | 35x39x102mm |
Net Weight | 73g | |
Package | Package | giftbox, instruction manual, softbag, cleaning cloth, adapter |
Box Dimension | 57x42x133mm | |
Quantity / Inner Carton | 40pcs | |
Quantity / Master Carton | 80pcs | |
Net Weight / Master Carton | 11.10kgs | |
Gross Weight / Master Carton | 12.30kgs | |
Dimension / Master Carton | 300x535x310mm | |
 | ||
