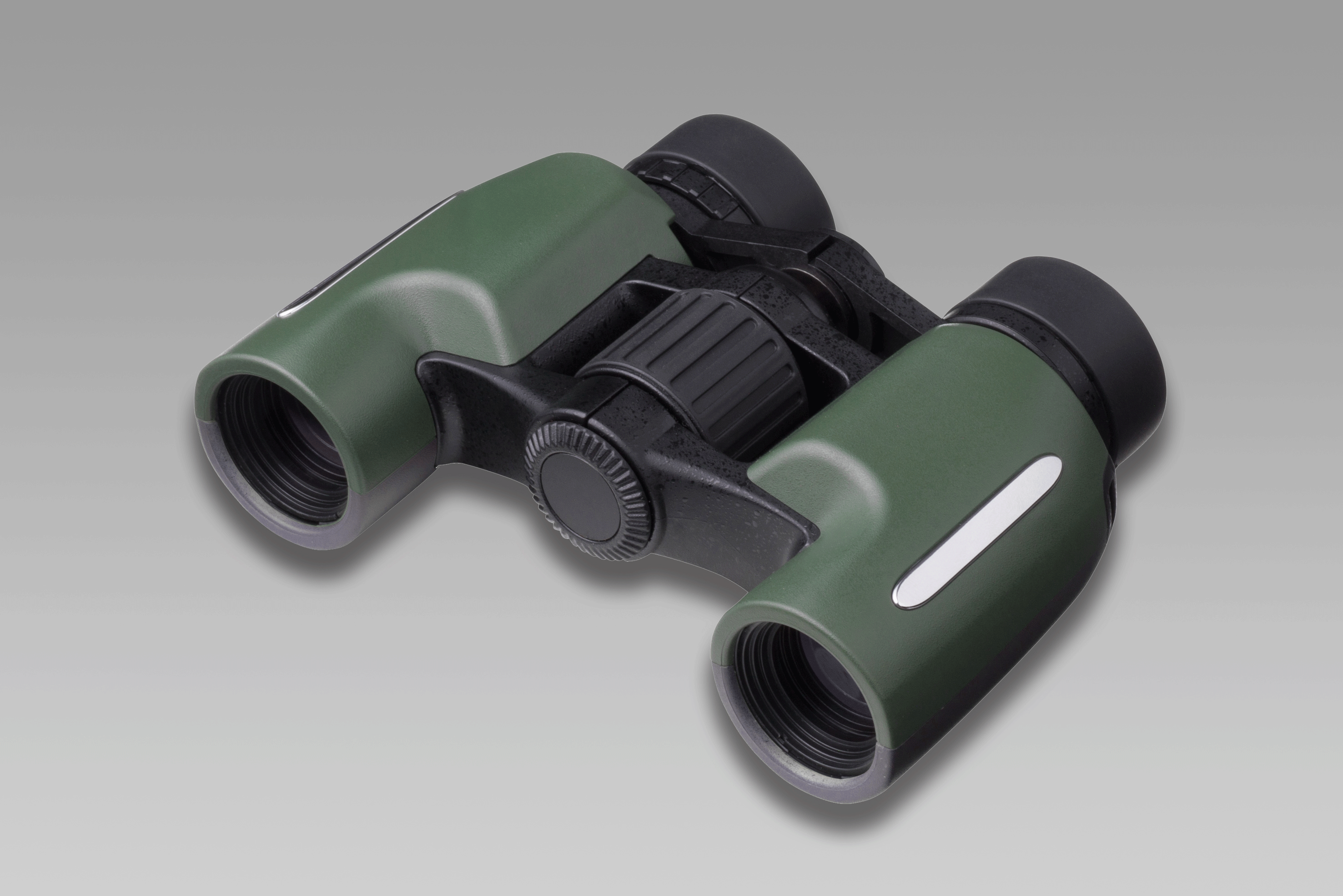

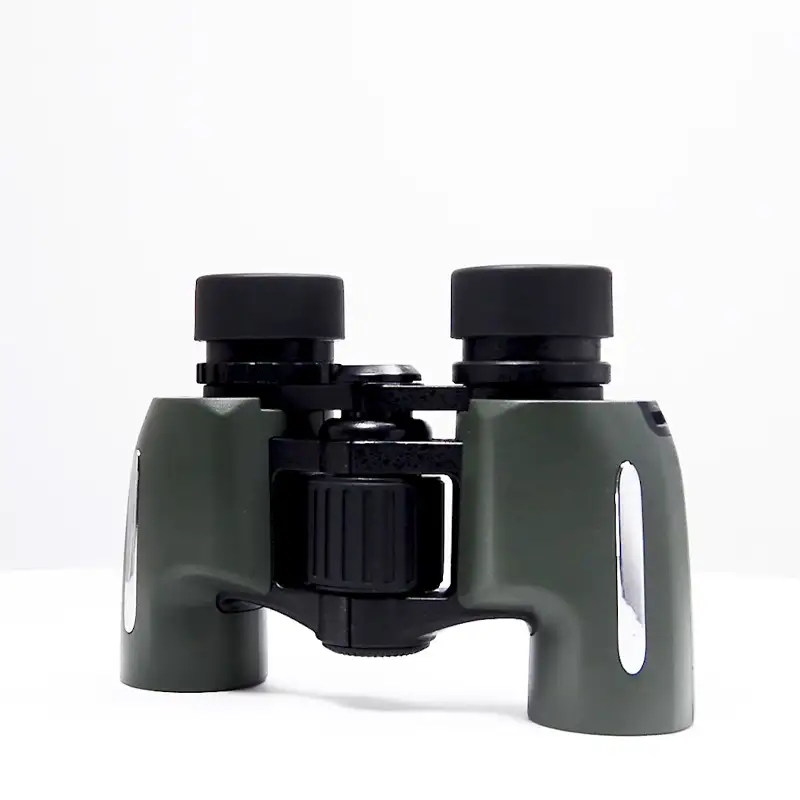

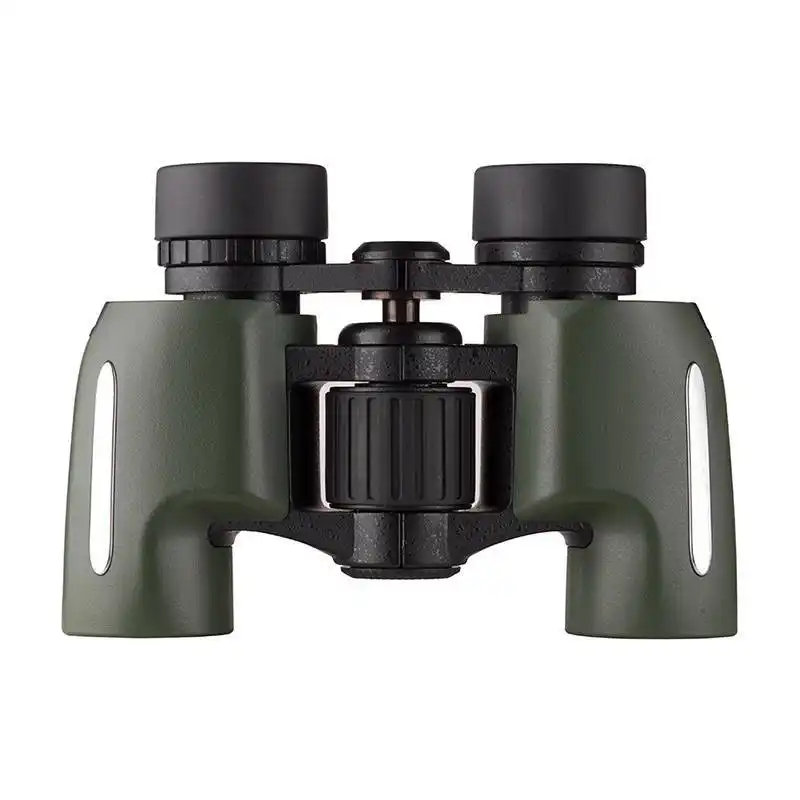

LR-PB01B 6X24 8X24 10X24 Porro Binoculars
Fully Multi Coated Compact Portable 6X24 8X24 10X24 Porro Binoculars
Perfect for concerts, sports events, hiking, camping,travel
5.0
Product:
Porro Binoculars
Item No.:
LR-PB01-B
Model:
6x24mm, 8x24mm, 10x24mm
Regular Package:
corrugated box
Price Term:
EXW (FCA/FAS/FOB/CFR/CIF/CPT/CIP/DAT/DAP/DDU/DDP are also available.)
Payment Term:
30%~50% before production, 70%~50% before shipping
Payment Method:
T/T, L/C, Paypal
MOQ:
200 PCS
Lead Time:
30-45 Days
Port of Loading:
main ports of China
Customization:
color, logo and package
Accessories:
dust caps on eyepieces, neck strap, softbag with shoulder strap, cleaning cloth, stand or table tripod (optional), smart phone adapter (optional), bluetooth remote (optional)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
* Unique bio-colorable design makes your product different from others.
* Excellent Optical System: High-quality optical design provides dependable optical performance.
* Magnification and Wild Field of View: Powerful magnification and wild field of view are suitable for fast focus on moving targets.
* FMC Lenses and Coated Prism: Superior fully multi-coated lenses with ultra wide band coatings and coated porro prism transmit bright, crisp images with excellent color fidelity and clarity.
* Focus Knob: The smooth central focus knob makes the binoculars simple to be operated and easy to focus.
* Adjustable Twist-up Eyecup: Eyecups twist up for customizable eye relief while a right eye diopter accomodates for focal differences in your eyes.
* Waterproof: O-ring sealed for waterproof protection provides exceptional performance in rugged conditions..
* Shock-proof: Durable framework structure provides effective shock-proof.
* Tripod: All-metal tripod hole can match any tripod, and ensures steady viewing in any situation.
* Phone Adpater: A professional phone adpater ensures stable views and easy photography and recording.
OPTICAL PARAMETERS
Item No. | LR-PB01-B | Field of Angel | 8.5° |
Model | 6x24 | Apparent Field of Angle | 51° |
Magnification | 6X | Field of View | 149m/1000m |
Clear Aperture | 24mm | Exit Pupil | 4mm |
Ocular Lens Coating | FMC | Eye Relief | 16mm |
Objective Lens Coating | FMC | Brightness | 16 |
Prism / Prism Coating | BAK4 / MC | Near Focus | 3m |
Focus | Focus Ring | Waterproof Grade | IPX4 |
Eyepiece Cup | Twist-up | Nitrogen Filled | No |
Item No. | LR-PB01-B | Field of Angel | 6.5° |
Model | 8x24 | Apparent Field of Angle | 52° |
Magnification | 8X | Field of View | 114m/1000m |
Clear Aperture | 24mm | Exit Pupil | 3mm |
Ocular Lens Coating | FMC | Eye Relief | 14.5mm |
Objective Lens Coating | FMC | Brightness | 9 |
Prism / Prism Coating | BAK4 / MC | Near Focus | 3m |
Focus | Focus Ring | Waterproof Grade | IPX4 |
Eyepiece Cup | Twist-up | Nitrogen Filled | No |
Item No. | LR-PB01-B | Field of Angel | 5° |
Model | 10x24 | Apparent Field of Angle | 50° |
Magnification | 10X | Field of View | 87.5m/1000m |
Clear Aperture | 24mm | Exit Pupil | 2.4mm |
Ocular Lens Coating | FMC | Eye Relief | 14.5mm |
Objective Lens Coating | FMC | Brightness | 5.8 |
Prism / Prism Coating | BAK4 / MC | Near Focus | 3m |
Focus | Focus Ring | Waterproof Grade | IPX4 |
Eyepiece Cup | Twist-up | Nitrogen Filled | No |
Product Advantages
PRODUCT DETAILS
1 | 2 | 3 | 4 | 5 | 6 | 7 |
FMC Ocular Lenses | FMC Objective Lenses | Twist Up Large Eyepiece | Interpupillary Distance Adjustment | Large Focus Ring | Strap Hole | Tripod Interface |
PACKAGING DATA
LR-PB01-B | ||
Product | Dimension (WxHxD) | 152x102x44mm |
Net Weight | 400g | |
Package | Package | giftbox, instruction manual, neck strap, softbag, cleaning cloth |
Box Dimension | 197x158x68mm | |
Quantity / Inner Carton | 10pcs | |
Quantity / Master Carton | 20pcs | |
Net Weight / Master Carton | 12.50kgs | |
Gross Weight / Master Carton | 13.40kgs | |
Dimension / Master Carton | 450x335x400mm | |
OPTIONAL ACCESSORIES
Tripod Adapter
Stand Tripod
Table Tripod
Smartphone Adapter and
Bluetooth Remote
Bluetooth Remote
