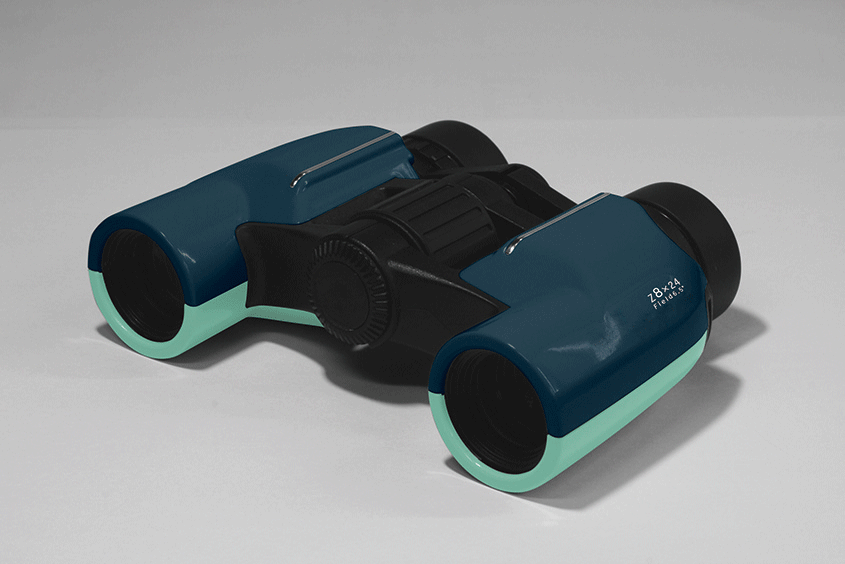

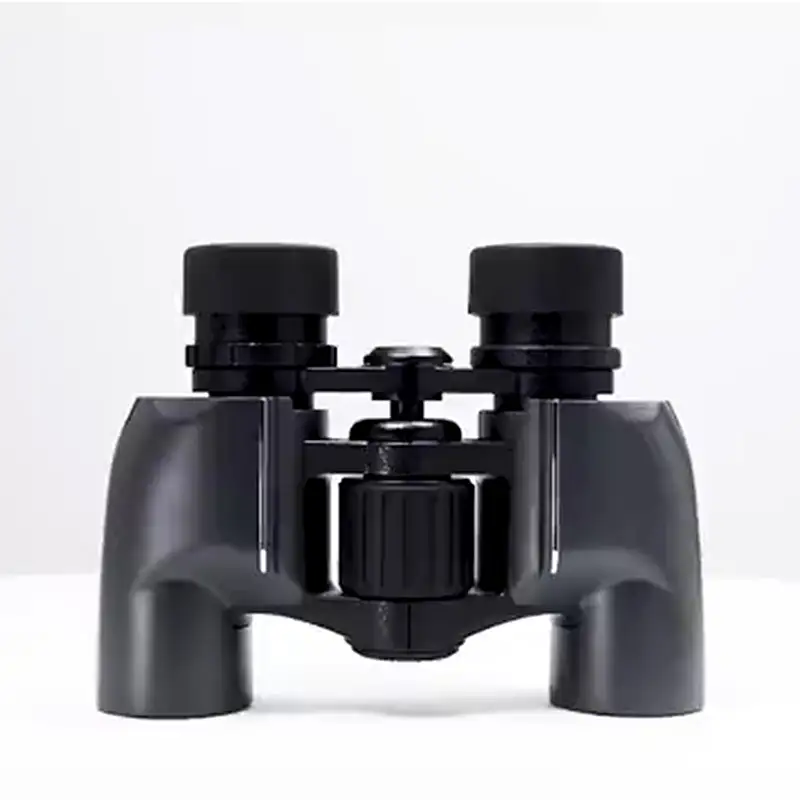

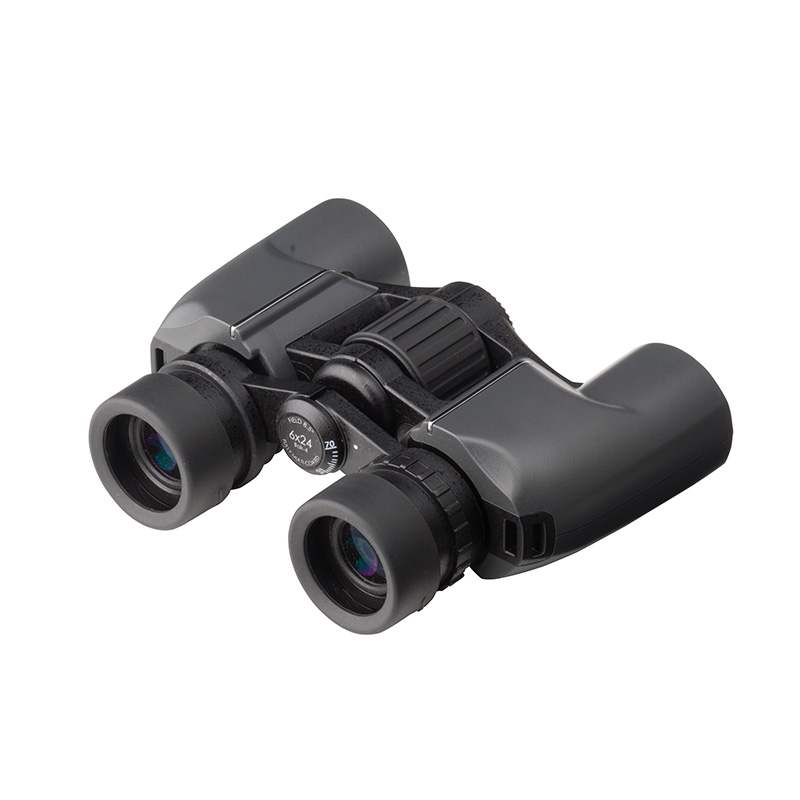

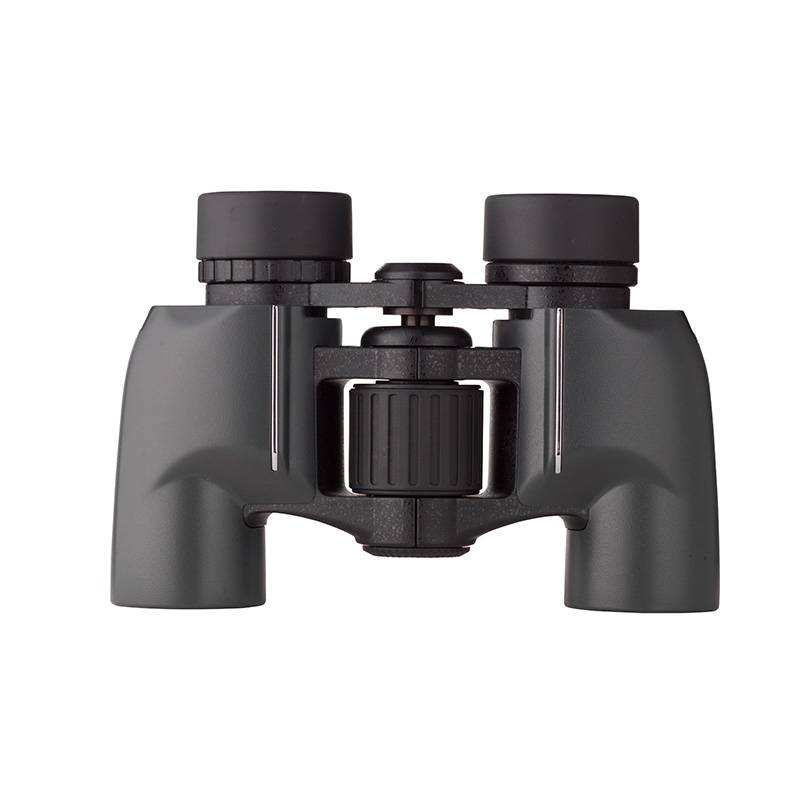

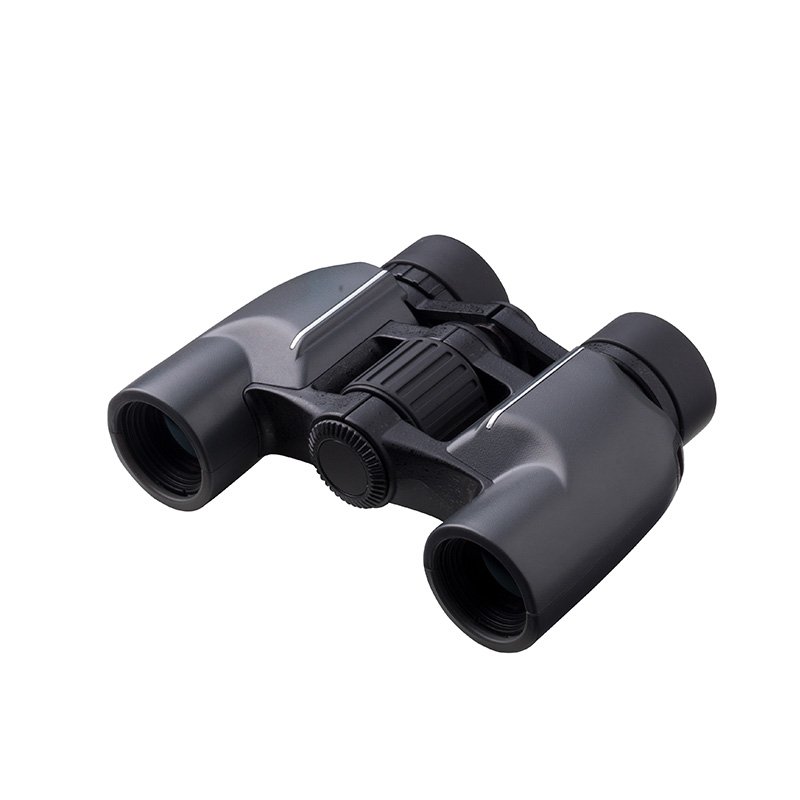

LR-PB01A 6X24 8X24 10X24 Porro Binoculars
High Power Optical HD BAK7 Compact smalll Portable FMC Porro Binoculars
for Outdoor Activities Adults Concert Travel Hiking Camping Bird Watching Sports
5.0
Product:
Porro Binoculars
Item No.:
LR-PB01A
Model:
6x24mm, 8x24mm, 10x24mm
Regular Package:
corrugated box
Price Term:
EXW (FCA/FAS/FOB/CFR/CIF/CPT/CIP/DAT/DAP/DDU/DDP are also available.)
Payment Term:
30%~50% before production, 70%~50% before shipping
Payment Method:
T/T, L/C, Paypal
MOQ:
200pcs
Lead Time:
30-45 Days
Port of Loading:
main ports of China
Customization:
color, logo and package
Accessories:

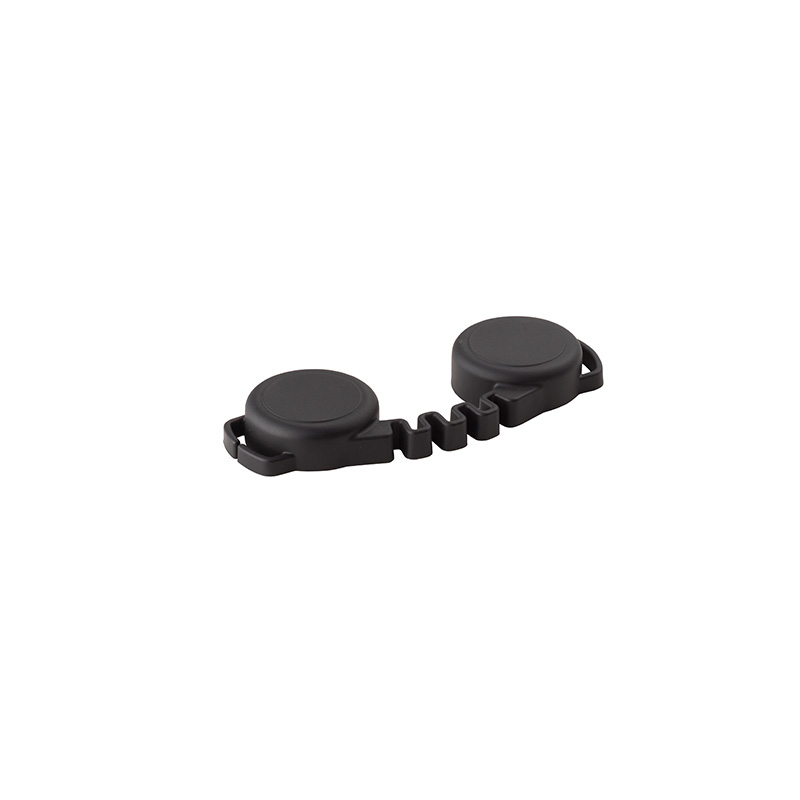

dust caps on eyepieces, neck strap, softbag with shoulder strap, cleaning cloth, stand or table tripod (optional), smart phone adapter (optional), bluetooth remote (optional)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
* Unique bio-colorable design makes your product different from others.
* Excerllent Optical System: Excerllent optical system provides sharp, bright and high contrast images.
* Magnification and Wild Field of View: Powerful magnification and large field of view especially designed for all kindly of outdoor activities, such as traveling, hiking, shooting, hunting, camping, bird or wildlife watching, spotting moon, archery, astronomy obervation.
* FMC Lenses and Coated Prism: Fully multi-coated lenses with ultra wide band coatings and coated porro prism deliver maximum light.
* Focus Knob: The smooth central focus knob makes the binoculars simple to be operated and easy to focus.
* Adjustable Twist-up Eyecup: Adjustable eyecups twist up or down for comfortable viewing with or without eyeglasses.
* Waterproof: The waterproof feature is perfect for observing the target in the rug conditions.
* Shock-proof: Durable construction provides shock-proof grip and durable external protection.
* Tripod: Come with tripod allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.
* Phone Adpater: An univeral phone adapter fits popular smart phones which is quicker and easier installed and removed. Make it easy to take videos and images in the distant world.
OPTICAL PARAMETERS
Item No. | LR-PB01-A | Field of Angel | 8.5° |
Model | 6x24 | Apparent Field of Angle | 51° |
Magnification | 6X | Field of View | 149m/1000m |
Clear Aperture | 24mm | Exit Pupil | 4mm |
Ocular Lens Coating | FMC | Eye Relief | 16mm |
Objective Lens Coating | FMC | Brightness | 16 |
Prism / Prism Coating | BAK4 / MC | Near Focus | 3m |
Focus | Focus Ring | Waterproof Grade | IPX4 |
Eyepiece Cup | Twist-up | Nitrogen Filled | No |
Item No. | LR-PB01-A | Field of Angel | 6.5° |
Model | 8x24 | Apparent Field of Angle | 52° |
Magnification | 8X | Field of View | 114m/1000m |
Clear Aperture | 24mm | Exit Pupil | 3mm |
Ocular Lens Coating | FMC | Eye Relief | 14.5mm |
Objective Lens Coating | FMC | Brightness | 9 |
Prism / Prism Coating | BAK4 / MC | Near Focus | 3m |
Focus | Focus Ring | Waterproof Grade | IPX4 |
Eyepiece Cup | Twist-up | Nitrogen Filled | No |
| |||
Item No. | LR-PB01-A | Field of Angel | 5° |
Model | 10x24 | Apparent Field of Angle | 50° |
Magnification | 10X | Field of View | 87.5m/1000m |
Clear Aperture | 24mm | Exit Pupil | 2.4mm |
Ocular Lens Coating | FMC | Eye Relief | 14.5mm |
Objective Lens Coating | FMC | Brightness | 5.8 |
Prism / Prism Coating | BAK4 / MC | Near Focus | 3m |
Focus | Focus Ring | Waterproof Grade | IPX4 |
Eyepiece Cup | Twist-up | Nitrogen Filled | No |
Product Advantages
PRODUCT DETAILS
1 | 2 | 3 | 4 | 5 | 6 | 7 |
FMC Ocular Lenses | FMC Objective Lenses | Twist Up Large Eyepiece | Large Focus Ring | Interpupillary Distance Adjustment | Strap Hole | Tripod Interface |
PACKAGING DATA
LR-PB01A | ||
Product | Dimension (WxHxD) | 152x102x44mm0mm |
Net Weight | 400g | |
Package | Package | giftbox, instruction manual, neck strap, softbag, cleaning clothclothoth |
Box Dimension | 197x158x68mm | |
Quantity / Inner Carton | 10pcs | |
Quantity / Master Carton | 20pcs | |
Net Weight / Master Carton | 12.50kgs | |
Gross Weight / Master Carton | 13.40kgs | |
Dimension / Master Carton | 450x335x400mm | |
 | ||
OPTIONAL ACCESSORIES
Tripod Adapter
Stand Tripod
Table Tripod
Smartphone Adapter and
Bluetooth Remote
Bluetooth Remote
