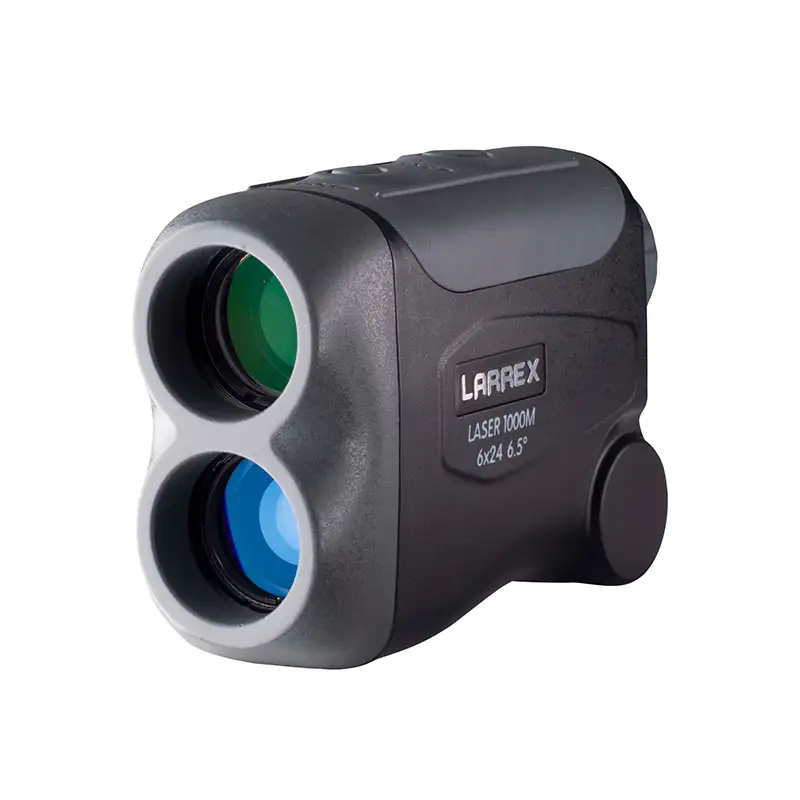

LR-RF01 6X24 Laser Rangefinder

OEM Portable Smart Flag Pole Lock Small Fashion Compact Magnet Laser Rangefinder For Hunting Golf

Product:

Range Finder

Item No.:

LR-RF01

Model:

6x24mm

Certification:

CE, FCC

Regular Package:

corrugated box

Price Term:

EXW (FCA/FAS/FOB/CFR/CIF/CPT/CIP/DAT/DAP/DDU/DDP are also available.)

Payment Term:

30%~50% before production, 70%~50% before shipping

Payment Method:

T/T, L/C, Paypal

MOQ:

200pcs

Lead Time:

30-45 days

Port of Loading:

main ports of China

Customization:

color, logo and package

Accessories:

EVA case or regular bag, strap, cleaning cloth, stand or table tripod (optional)

Inquiry

Write a Review

Golf rangefinder, with 6X magnification and excellent accuracy. Comfortable grip with ergonomic design, lightweight butcompact, portable rangefinder perfectfor carrying while golf or hunting.

● 6X Magnification: 6X magnification x 24mm objective lens, provides a crystal clear view of the target and its surroundings.

● Premium Optics: Superior optical material to bring nose to nose feeling to the target within 3.5~600M/800M/1000M/1200M/1500M, it’s intended to be a top bow rangefinder in hunting season.

● Waterproof: Fully waterproof with nitrogen-filled,suitable for all outdoor activities during rainy day.

● Small Size:The smallest size among similar rangefinders and very portable to carry out into pocket.

● Unique Appearance:The appearance is very unique,designed by ourselves.Very popular in Japanese and US market.

PRODUCT FUNCTIONS

Basic Functions	Distance	Straight Line (Actual) Distance
		Horizontal Distance
		Vertical Distance - Height
	Degree of Elevation
	Continuously Scan
	Closest Mode
	Farthest Mode
	Golf Pinseeker
	Slope Compansation
	Waterproof-IPX4
	Fogproof
	Dustproof
	Shockproof
Optional Functions	Speed
	Magnet

PRODUCT DETAILS

RANGING PARAMETERS

Principle	The unit emits a laser beam that is invisible and safe to the eyes. Then it calculates distances by measuring the time it takes for the laser to travel from the rangefinder to the target and then back again.
Wave Length	‍‍905 nanometer‍‍	Distance Effective Operating Range	3.5 ~ 600m
Display	LCD		3.5 ~ 800m
Resolution	0.1		3.5 ~ 1000m
Operation Temperature	-10 ~ 50°C		3.5 ~ 1200m
Operation Humidity	≤ 80%		3.5 ~ 1500m
Waterproof	Yes‍	Distance Accuracy	< 700m: ±0.75m
Waterproof	Yes‍		700m ~ 1000m: ±1.25m
Nitrogen Filled	No		> 1000m: ±1.75m
Self-Adaption under Foggy Weather	Yes	Angle Effective Operating Range	-90° ~ 90°
Unit Toggle between Meter and Yard	Yes	Angle Accuracy	±0.5°
Built-in Tripod Mount	Yes	Battery	CR2 3-Volt Lithium X1

OPTICAL PARAMETERS

Item No.	LR-RF01	Field of Angel	6.5°
Model	6x24	Apparent Field of Angle	39°
Magnification	6X	Field of View	114m / 1000m
Clear Aperture	24mm	Exit Pupil	4mm
Ocular Lens Coating	Fully Multi-Coat	Eye Relief	12mm
Objective Lens Coating	Fully Multi-Coat	Brightness	16
Laser Emitter and Receiver	Laser Reflective-Coat	Near Focus	3.5m
Number of Lens	5Pcs / 3Groups	Waterproof Grade	IPX4
Focus	Eyepiece	Nitrogen Filled	No

1	2	3	4	5	6	7	8	9
Premium Ocular Lens	FMC Objective Lens	Laser Emitter and Receiver	Focus Ring	Power	Mode	Battery House	Strap Hole	Tripod Mount

PACKAGING DATA

LR-RF01
Product	Dimension (WxHxD)	113x74x41mm
Product	Net Weight	177g
Package	Package	giftbox, instruction manual, wrist strap, softbag, cleaning cloth
	Box Dimension	mm
	Quantity / Inner Carton	10pcs
	Quantity / Master Carton	40pcs
	Net Weight / Master Carton	10.8kgs
	Gross Weight / Master Carton	11.8kgs
	Dimension / Master Carton	335X540X370mm
