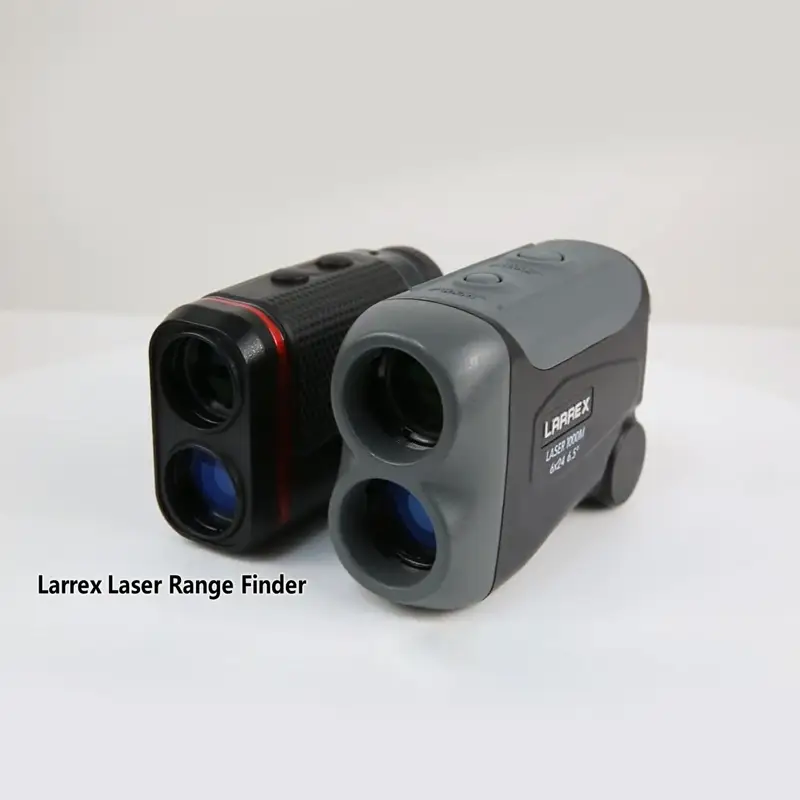

6X Magnification Range Finder Supplier Optic Range Finder For Sale

optical rangefinder

Item No.:

LR-RF02

Model:

6x24

Certification:

CE, FCC

Payment Term:

30%~50% before production, 70%~50% before shipping

Payment Method:

T/T, L/C, Paypal

MOQ:

100 pcs

Lead Time:

30-45 days

Customization:

color, logo and package

Accessories:

EVA case or regular bag, strap, cleaning cloth, stand or table tripod (optional)

Inquiry

Write a Review

PRODUCT DETAILS

6X Magnification Range Finder Supplier Optic Range Finder For Sale 7

* Safe Laser: Invisible and safe to eyes laser beam.

* Fast Accurate Reading: Fast measurement and accurate display help you make sure you won't miss any target.

* Wide Ranges: Larrex optic range finder provide serval choices of distance ranges are for different outdoor activities. Easily range out from min. 3 meters to max. 1500 meters on a reflective target with long distance ranging.

* Magnification: Added 6x magnification brings target in for a closer look and more accurate ranging.

* FMC Coated Lens: Fully multi-coated lenses with ultra wide band coatings deliver optimal light transmission, especially enhance light transmission in low light settings.

* Visual Adjustment: The diopter located on eyepiece can be adjusted for vision differences in user's eyes.

* Unit Toggle: 6x magnification range distance finder can be set to read in yards or meters.

* Water-proof and Fogproof: With fully waterproof and self-adaption under foggy weather functions, the range finder can operate in various outdoor activities stably no matter what the conditions are.

* Shock-proof and Slip-proof: Top textured rubber armor provides a secure, non-slip grip.

* Built-in Tripod Interface: Compatible tripod interface can fit the range finder with tripod or car window mount together.

* Distance, Angle and Speed Measurement: Accurate measurements of distance, angle and speed with fast display on screen.

* Continuous Scan: With continuous scan function, the 6x magnification range finder can be aimed at the target and follow the movement to quickly obtain distance and speed of the target.

* Far / Close Mode: Different from standard mode, in closest or farthest modes, the range finder can measure the slope distance and angle, obtain the closest or farthest target distance in multiple targets.

* Golf Pinseeker: Flag acquisition technology makes it effortless to lock on to the flag even for those with shaky hands.

* Golf Slope Compensation: Slope compensation measures the angle of incline or decline and automatically calculates slope adjusted distance.

* Built-in Magnetic: Built-in magnetic strip conveniently clips the range finder to golf cart, golf club or any metal surface for quick play between shots.

* Waterproof: Optional fully waterproof with nitrogen filled meets the highest IPX7 standard.

6X Magnification Range Finder Supplier Optic Range Finder For Sale 8

6X Magnification Range Finder Supplier Optic Range Finder For Sale 9

PRODUCT FUNCTIONS

Basic Functions	Distance	Straight Line (Actual) Distance
		Horizontal Distance
		Vertical Distance - Height
	Degree of Elevation
	Continuously Scan
	Closest Mode
	Farthest Mode
	Golf Pinseeker
	Slope Compansation
	Waterproof-IPX4
	Fogproof
	Dustproof
	Shockproof
Optional Functions	Speed
	Fully Waterproof-IPX7 (Nitrogen Filled)

RANGING PARAMETERS

Principle	The unit emits a laser beam that is invisible and safe to the eyes. Then it calculates distances by measuring the time it takes for the laser to travel from the rangefinder to the target and then back again.
Wave Length	905 nanometer	Distance Effective Operating Range	3.5 ~ 600m
Display	LCD		3.5 ~ 800m
Resolution	0.1		3.5 ~ 1000m
Operation Temperature	-10 ~ 50°C		3.5 ~ 1200m
Operation Humidity	≤ 80%		3.5 ~ 1500m
Waterproof	Yes	Distance Accuracy	< 700m: ±0.75m
Waterproof	Yes		700m ~ 1000m: ±1.25m
Nitrogen Filled	No		> 1000m: ±1.75m
Self-Adaption under Foggy Weather	Yes	Angle Effective Operating Range	-90° ~ 90°
Unit Toggle between Meter and Yard	Yes	Angle Accuracy	±0.5°
Built-in Tripod Mount	Yes	Battery	CR2 3-Volt Lithium X1

6X Magnification Range Finder Supplier Optic Range Finder For Sale 10

6X Magnification Range Finder Supplier Optic Range Finder For Sale 11

6X Magnification Range Finder Supplier Optic Range Finder For Sale 12

OPTICAL PARAMETERS

Item No.	LR-RF02	Field of Angel	6.5°
Model	6x24	Apparent Field of Angle	39°
Magnification	6X	Field of View	114m / 1000m
Clear Aperture	24mm	Exit Pupil	4mm
Ocular Lens Coating	Fully Multi-Coat	Eye Relief	12mm
Objective Lens Coating	Fully Multi-Coat	Brightness	16
Laser Emitter and Receiver	Laser Reflective-Coat	Near Focus	3.5m
Number of Lens	5Pcs / 3Groups	Waterproof Grade	IPX4 / IPX7
Focus	Eyepiece	Nitrogen Filled	No / Yes

1	2	3	4	5	6	7	8	9	10
Premium Ocular Lens	FMC Objective Lens	Laser Emitter and Receiver	Focus Ring	Power	Mode	Battery House	Strap Hole	Tripod Mount	Label

PACKAGING DATA

LR-RF02
Product	Dimension (WxHxD)	97x66x37mm
	Net Weight	154g
Package	Package	‍giftbox, instruction manual, regular case, strap, battery (optional)	giftbox, instruction manual, EVA case, strap, battery (optional)
	Box Dimension	146x95x67mm
	Quantity / Inner Carton	20pcs	20pcs
	Quantity / Master Carton	40pcs	40pcs
	Net Weight / Master Carton	8kgs
	Gross Weight / Master Carton	10kgs
	Dimension / Master Carton	335x540x370mm
