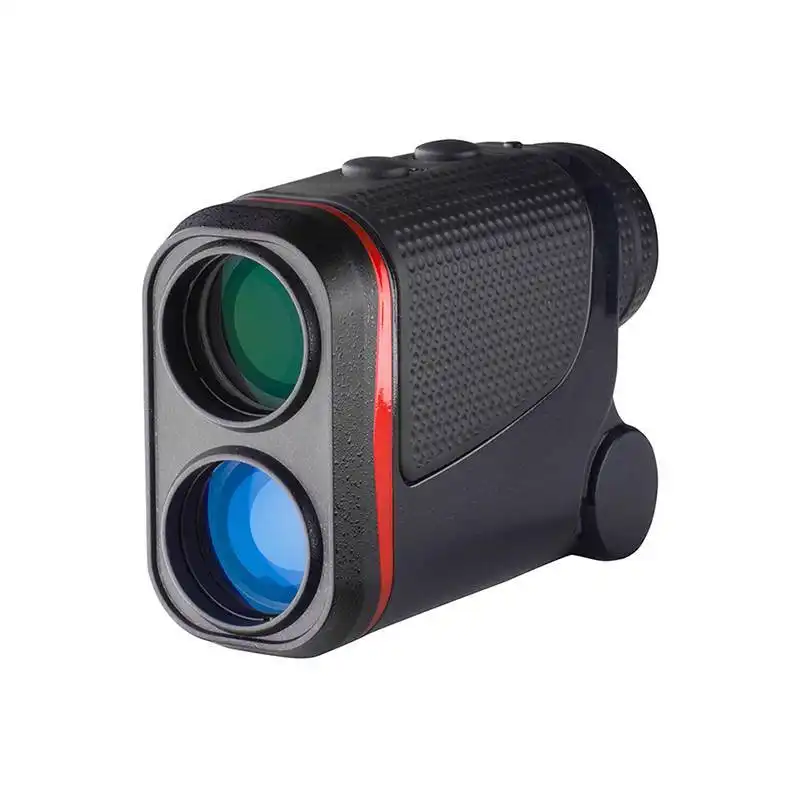

OEM Portable LR-RF02 Laser Rangefinder For Hunting Golf
5.0
Product:
Range Finder
Item No.:
LR-RF02
Model:
6x24
Regular Package:
corrugated box
Price Term:
EXW (FCA/FAS/FOB/CFR/CIF/CPT/CIP/DAT/DAP/DDU/DDP are also available.)
Payment Term:
30%~50% before production, 70%~50% before shipping
Payment Method:
T/T, L/C, Paypal
MOQ:
200pcs
Lead Time:
30-45 days
Port of Loading:
main ports of China
Customization:
color, logo and package
Accessories:
EVA case or regular bag, strap, cleaning cloth, stand or table tripod (optional)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Golf range finder, with 6X magnification and excellent accuracy. Comfortable grip with ergonomic design, lightweight butcompact, portable rangefinder perfectfor carrying while golf or hunting.
● 6X Magnification: 6X magnification x 24mm objective lens, provides a crystal clear view of the target and its surroundings.
● Premium Optics: Superior optical material to bring nose to nose feeling to the target within 3.5~600M/800M/1000M/1200M/1500M, it’s intended to be a top bow rangefinder in hunting season.
● Waterproof: Fully waterproof with nitrogen-filled,suitable for all outdoor activities during rainy day.
● Small Size:The smallest size among similar rangefinders and very portable to carry out into pocket.
● Unique Appearance:The appearance is very unique,designed by ourselves.Very popular in Japanese and US market.
PRODUCT DETAILS
| Basic Functions | Distance | Straight Line (Actual) Distance |
| Horizontal Distance | ||
| Vertical Distance - Height | ||
| Degree of Elevation | ||
| Continuously Scan | ||
| Closest Mode | ||
| Farthest Mode | ||
| Golf Pinseeker | ||
| Slope Compansation | ||
| Waterproof-IPX4 | ||
| Fogproof | ||
| Dustproof | ||
| Shockproof | ||
| Optional Functions | Speed | |
| Magnet | ||
RANGING PARAMETERS
Principle | The unit emits a laser beam that is invisible and safe to the eyes. Then it calculates distances by measuring the time it takes for the laser to travel from the rangefinder to the target and then back again. | ||
Wave Length | 905 nanometer | Distance Effective Operating Range | 3.5 ~ 600m |
Display | LCD | 3.5 ~ 800m | |
Resolution | 0.1 | 3.5 ~ 1000m | |
Operation Temperature | -10 ~ 50°C | 3.5 ~ 1200m | |
Operation Humidity | ≤ 80% | 3.5 ~ 1500m | |
Waterproof | Yes | Distance Accuracy | < 700m: ±0.75m |
| 700m ~ 1000m: ±1.25m | |||
Nitrogen Filled | No | > 1000m: ±1.75m | |
Self-Adaption under Foggy Weather | Yes | Angle Effective Operating Range | -90° ~ 90° |
Unit Toggle between Meter and Yard | Yes | Angle Accuracy | ±0.5° |
Built-in Tripod Mount | Yes | Battery | CR2 3-Volt Lithium X1 |
OPTICAL PARAMETERS
| Item No. | LR-RF02 | Field of Angel | 6.5° |
| Model | 6x24 | Apparent Field of Angle | 39° |
| Magnification | 6X | Field of View | 114m / 1000m |
| Clear Aperture | 24mm | Exit Pupil | 4mm |
| Ocular Lens Coating | Fully Multi-Coat | Eye Relief | 12mm |
| Objective Lens Coating | Fully Multi-Coat | Brightness | 16 |
| Laser Emitter and Receiver | Laser Reflective-Coat | Near Focus | 3.5m |
| Number of Lens | 5Pcs / 3Groups | Waterproof Grade | IPX4 |
| Focus | Eyepiece | Nitrogen Filled | No |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Premium Ocular Lens | FMC Objective Lens | Laser Emitter and Receiver | Focus Ring | Power | Mode | Battery House | Strap Hole | Tripod Mount |
OPTIONAL ACCESSORIES
