3X digital zoom Night Vision Portable Night Vision Device

这里可以自定义设置

With the Larrex Digital Night Vision Binoculars 3x you always have a clear view, even in poor lighting conditions and complete darkness. The built-in 850 nm infrared lighting can be adjusted according to the environment due to the 7 different brightness levels. Thus, you can see up to 200 m at night or in dark surroundings and up to 500 m during the day. Is the object you are watching despite the 3x magnification still too far away to observe properly? Then use the up to 2x digital zoom to see more details. In order to enjoy a sharp image on the LC display inside the night vision device, simply adjust the focus by turning the focus wheel. You can also set the screen brightness to 9 different levels, which can reduce eye strain during long-term observations.

Product Features：

● Digital binocular night vision goggles with 200 m range; magnification: 3x (up to 6x with digital zoom)

● Can take photos and record videos, VGA sensor (300 pixels)

● Dimensions: approx. 160 x 200 x 60 mm / weight: 529 g

● Scope of delivery: night vision device, bag, shoulder strap, instruction manual

● Built-in infrared illumination (850 nm)

● With tripod connection thread

Night Vision Highlights

√ Digital night vision binoculars are a professional tool that allows you to see in total darkness. With an HD screen and up to 1080p video resolution.

√ HD camera lens with infrared led illuminator and 5X digital zoom. Observe, track and target a nocturnal animal up to 984ft / 300m away.

√ A comfortable neck strap provided with our night vision binoculars allows for hours of comfortable and stable watch throughout those long nights wherever the surface is flat.

√ This digital night vision goggles is designed for both day and night use, to allow you to view objects clearly. It has three working mode like photo, video and playback mode.

√ Use for observation during hunting, long range scouting, cave exploration, stealth fishing, etc.

√ 6 Operation buttons, with Up,Down,Menu,Power On/off,Mode,Shot/ok. Press "IR UP" button to increase the brightness up to the result you would prefer, the max level is "7"; press "IR Down" to decrease the brightness. The higher the infrared light gear is adjusted, the farther and clearer the observation is.

√ You can connect the night vision goggles to PC through USB Type C 2.0 cable to keep precious images/videos to avoid loss.

FUNCTIONS AND PARAMETERS

Item No.		LR-NV400	System		4 modes: capture / video / playback / menu
Imager	Sensor	wide dynamic range high-sensitivity CMOS sensor			single frame image capture
	Size	1/3"			video image record
	Resolution	640x480			playback image
Video	TFT LCD Resolution	320x240			delete image
	CVBS Output	CVBS always output with VGA resolution			5 levels IR switch for USB power, 3 levels IR switch for battery.
	USB Output	USB UVC output			4 levels LCD brightness
	Menu Display	OSD menu display			system rest
IR LED	Lighting Device	3W infared LED with 850nm			auto power save: ON / OFF / 1min / 3min / 5min
IR LED	Lighting Working	adjustable high-middle-low-off			TV output format: PAL / NTSC
USB Output	UVC Class	yes			flicker: 50 / 60HZ
USB Output	MSC Class	yes			SD card format
AV Output		yes			date input
Micro SD Card Output		support SDHC 4GB~32GB SD card			language: English / Trad.Chinese / Simp.Chinese / Japanese / French / Deutsch/Korean / Italian / Portuguese / Russian / Spanish / Arabic
Wireless LAN		N/A			version
		N/A	Application Mode	Day	yes
		N/A		Night	yes
		N/A		Dark	yes (with IR ON)
Hardware Buttons		power ON / OFF	Power	DC	5V / 1A
		mode selection		AA Battery	8pcs
		zoom		Battery Life with IR OFF	6h
		shutter / snap		Low Battery Warning	yes
		IR switch
Operation		preview
		capture JPEG file in SD storage
		record AVI file in SD storage
		playback media file from SD storage

PRODUCT ADVANTAGES

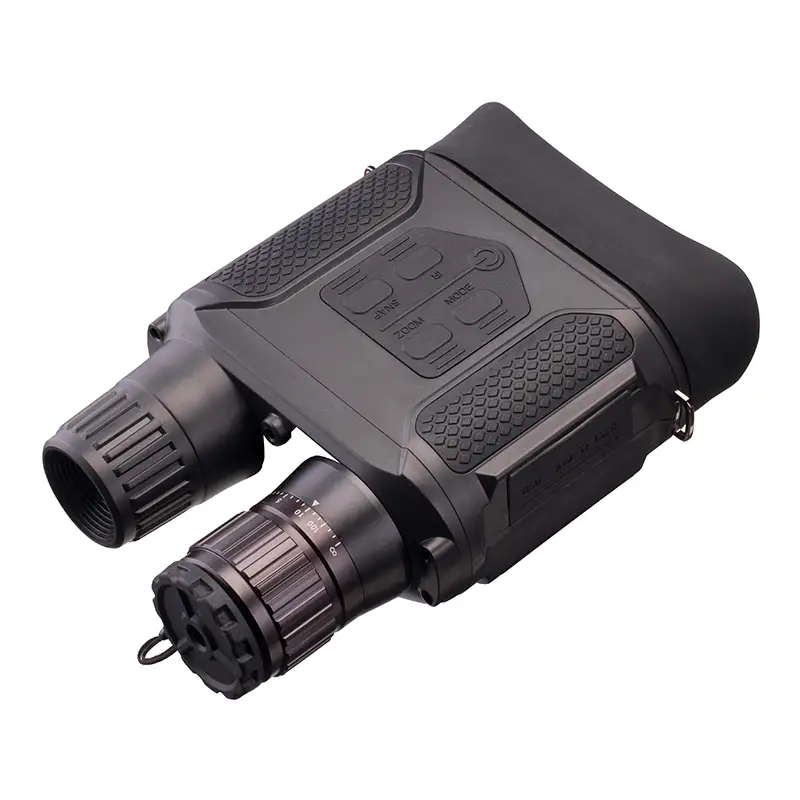

OPTICAL PARAMETERS

Item No.	LR-NV400B	Field of Angel	9°
Model		Field of View	158m/1000m
Magnification	3.5~7X	Eye Relief	30mm
Clear Aperture	31mm	Diopter Adjustment	+100°~-400°
Digital Zoom Magnification	max 2X	Near Focus	3m
Focus Adjustment	Manual	View Distance at Night	up to 400m

PRODUCT DETAILS

1	2	3	4	5	6	7	8
Ocular Lens	Objective Focus	IR Illuminator	Infrared Filter Cap	USB Port	A/V Out	Micro-CD Card Slot	Strap Hole
9	10	11	12	13	14	15
Battery House	Tripod House	Power	Mode Button	Zoom Button	IR Button	Snap Button
