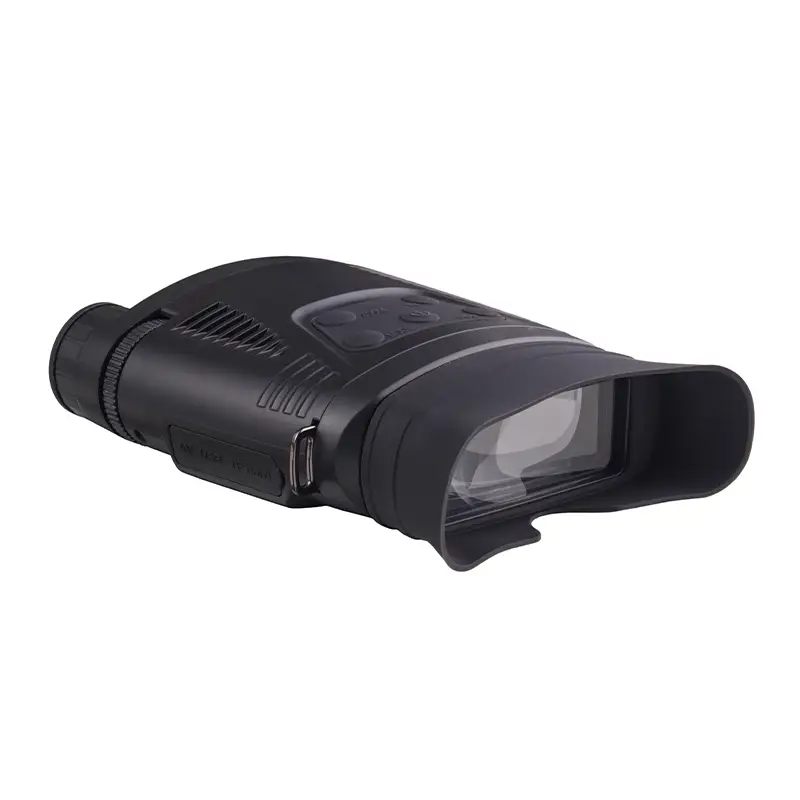

Night Vision NV200

Product:

Night Vision

Item No.:

LR-NV200C

Regular Package:

corrugated box

Price Term:

EXW (FCA/FAS/FOB/CFR/CIF/CPT/CIP/DAT/DAP/DDU/DDP are also available.)

Payment Term:

30%~50% before production, 70%~50% before shipping

Payment Method:

T/T, L/C, Paypal

MOQ:

300pcs

Lead Time:

30-45 days

Port of Loading:

main ports of China

Customization:

logo and package

Accessories:

EVA case or softbag, hand strap (only NV720), cleaning cloth, stand or table tripod (optional), USB cable, AV cable, Micro SD card (optional)

Inquiry

Write a Review

* Built in 3W Infrared LED, 850nm Infrared Illuminator: Allows viewing up to 700 ft/200m viewing distance in completely darkness; Day or night use (with IR off for daytime color); Use the supplied AV cable to view picture on a television or transfer the files to your PC using the supplied USB cable.

* 3.5 Inch Large View Screen with Outstanding Performance: Built In 1.5 inch TFT screen, convert to 3.5 inch large viewing screen by the convex lens; Resolution of screen: 340X240, comfortable to your eyes with or without glasses.

* Take Photo/Video And Large Storage: Storage capacity: 4GB to 32GB (include 8GB card). Don’t worry about lacking of buffer space. You can use the USB to connect the PC to transmit data to avoid data loss.

* Infrared-sensitive CMOS sensor: Adopt advance infrared-sensitive CMOS sensor match fully multi-coated optic increases light transmission and decreases glare. The digital night vision binoculars camera is a perfect tool for hunting, fishing, birdwatching, outdoors adventures, surveillance jobs or just plain fun watching concerts or sports.

* Battery And Powerbank Support: 4x AA Batteries (Not included). Powerbank support. Use the supplied AV cable to view picture on a television or transfer the files to your PC using the supplied USB cable. Accessories include: USB cable, AV cable, neck strap and soft carrying case.

FUNCTIONS AND PARAMETERS

Item No.		LR-NV200C	System		4 modes: capture / video / playback / menu
Imager	Sensor	wide dynamic range high-sensitivity CMOS sensor			single frame image capture
	Size	1/5"			video image record
	Resolution	640x480			playback image
Video	TFT LCD Resolution	320x240			delete image
	CVBS Output	CVBS always output with VGA resolution			5 levels IR switch for USB power, 3 levels IR switch for battery.
	USB Output	USB UVC output			4 levels LCD brightness
	Menu Display	OSD menu display			system rest
IR LED	Lighting Device	3W infared LED with 850nm			auto power save: ON / OFF / 1min / 3min / 5min
IR LED	Lighting Working	adjustable high-middle-low-off			TV output format: PAL / NTSC
USB Output	UVC Class	yes			flicker: 50 / 60HZ
USB Output	MSC Class	yes			SD card format
AV Output		yes			date input
Micro SD Card Output		support SDHC 4GB~32GB SD card			language: English / Trad.Chinese / Simp.Chinese / Japanese / French / Deutsch / Korean / Italian / Portuguese / Russian / Spanish / Arabic
Wireless LAN		N/A			version
		N/A	Application Mode	Day	yes
		N/A		Night	yes
		N/A		Dark	yes (with IR ON)
Hardware Buttons		power ON / OFF	Power	DC	5V / 1A
		mode selection		AA Battery	4pcs
		zoom		Battery Life with IR OFF	6h
		shutter / snap		Low Battery Warning	yes
		IR switch
Operation		preview
		capture JPEG file in SD storage
		record AVI file in SD storage
		playback media file from SD storage

OPTICAL PARAMETERS

Item No.	LR-NV400B	Field of Angel	9°
Model		Field of View	158m/1000m
Magnification	3.5~7X	Eye Relief	30mm
Clear Aperture	21mm	Diopter Adjustment	+100°~-400°
Digital Zoom Magnification	max 2X	Near Focus	3m
Focus Adjustment	Manual	View Distance at Night	up to 200m

PRODUCT DETAILS

1	2	3	4	5	6	7	8
Ocular Lens	Objective Focus	IR Illuminator	Infrared Filter Cap	A/V Out	USB Port	TF Card Slot	Strap Hole
9	10	11	12	13	14	15	16
Strap Hole	Battery House	Tripod House	Power	Mode Button	Zoom Button	IR Button	Snap Button

PACKAGING DATA

LR-NV200C
Product	Dimension (WxHxD)	144x85x46mm
Product	Net Weight (not including batteries)	428g
Package	Package	giftbox, instruction manual, EVA case or softbag, strap, cleaning cloth, USB cable, AV cable, Micro SD card (optional)
	Box Dimension	244x197x82mm
	Net Weight / Box	880g
	Quantity / Master Carton	10pcs
	Net Weight / Master Carton	8.80kgs
	Gross Weight / Master Carton	10.80kgs
	Dimension / Master Carton	480x410x290mm
