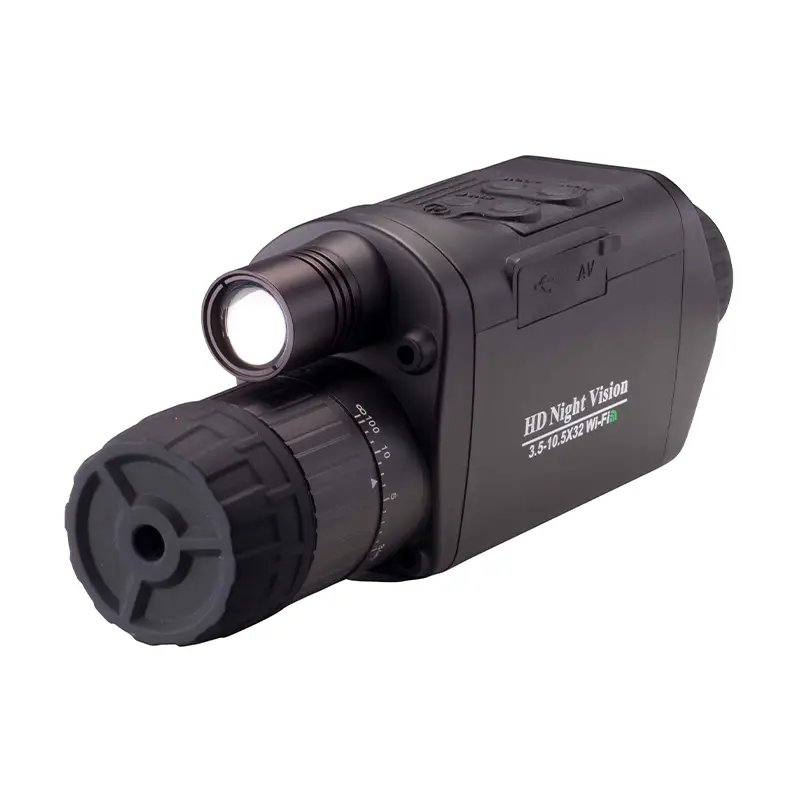

Night Vision NV720

这里可以自定义设置
Night Vision NV720
B站不支持收货地址
B站不支持库存规格
Product:
Night Vision
Item No.:
LR-NV720P
Regular Package:
corrugated box
Price Term:
EXW (FCA/FAS/FOB/CFR/CIF/CPT/CIP/DAT/DAP/DDU/DDP are also available.)
Payment Term:
30%~50% before production, 70%~50% before shipping
Payment Method:
T/T, L/C, Paypal
MOQ:
50pcs
Lead Time:
30-45 days
Port of Loading:
main ports of China
Customization:
logo and package
Accessories:
EVA case or softbag, hand strap (only NV720), cleaning cloth, stand or table tripod (optional), USB cable, AV cable, Micro SD card (optional)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
这里可以自定义设置

* Clearly See In 100% Darkness: While other night vision devices can not provide high-quality photos and videos without ambient light, drain your batteries within minutes or they are bulky and hard to control, the Compact Night Vision Monocular feature a infrared illuminator which allows you to easily view animals in pitch dark without lights for 5 hours.

* Day & Night Use: If you are looking for an innovative gift for a family member, the JStoon Travel Infrared Monocular will get anyone excited. It features a 1/3'' TFT screen making it easy to view photos instantly and the 3X digital zoom (3X Optical Magnification) allows you to see even 656 feet away.

* Durable: Take photos and videos at any time, record more true-to-life details. The infrared night vision is equipped with extra 8GB memory card, store about 3 hours of 320x240 video or about 30,000 photos of 1280X720 pixels. Also it’s easy to transfer files to a computer, which enables you to share fun with your family and friends.

* Highly Portable: NV720P Basic Monocular fits in a pocket, making it easy to carry around, and is simple to use. Ergonomic design helps you focus on your target quickly and accurately with one hand. It is covered by striped rubber armor on the outface, which gains more friction, not easy to slip out.

* Can Be Connected With Phone Via WIFI: WIFI connection with the mobile phone to watch the picture in real-time transmission. NV720P can connect the night vision with the mobile phone by WIFI. The mobile phone APP can be used to control the night vision. Just click the corresponding buttons on the APP to take pictures, video, and choose the resolution.

FUNCTIONS AND PARAMETERS

Item No.

LR-NV720P

System

4 modes: capture / video / playback / menu

Imager

Sensor

wide dynamic range high-sensitivity CMOS sensor

single frame image capture

Size

1/3"

video image record

Resolution

1280x720

playback image

Video

TFT LCD Resolution

320x240

delete image

CVBS Output

CVBS always output with VGA resolution

5 levels IR switch for USB power, 3 levels IR switch for battery.

USB Output

USB UVC output

4 levels LCD brightness

Menu Display

OSD menu display

system rest

IR LED

Lighting Device

3W infared LED with 850nm

auto power save: ON / 1min / 5min / 10min

Lighting Working

adjustable high-middle-low-off

TV output format: PAL / NTSC

USB Output

UVC Class

yes

flicker: 50 / 60HZ

MSC Class

yes

SD card format

AV Output

yes

date input

Micro SD Card Output

support SDHC 4GB~32GB SD card

language: English / Trad.Chinese / Simp.Chinese / Japanese /

French / Deutsch / Korean / Italian / Portuguese / Russian /

Spanish / Arabic

Wireless LAN

802.11 b / g / n

version

video transfer by peer-to-peer connection

Application Mode

Day

yes

video resolution: 1280x720

Night

yes

OS: Android / IOS

Dark

yes (with IR ON)

Hardware Buttons

power ON / OFF

Power

DC

5V / 1A

mode selection

AA Battery

4pcs

zoom

Battery Life with IR OFF

3h

shutter / snap

Low Battery Warning

yes

IR switch







Operation

preview







capture JPEG file in SD storage







record AVI file in SD storage







playback media file from SD storage







PRODUCT ADVANTAGES

FMC lenses bring sharp images

OPTICAL PARAMETERS

Item No.

LR-NV720P

Field of Angel

Model



Field of View

158m/1000m

Magnification

3.5~10.5X

Eye Relief

15mm

Clear Aperture

31mm

Diopter Adjustment

+100°~-400°

Digital Zoom Magnification

max 3X

Near Focus

3m

Focus Adjustment

Manual

View Distance at Night

up to 200m

PRODUCT DETAILS

1

2

3

4

5

6

7

8

9

Ocular

Ocular Focus

Objective

Objective Focus

IR Illuminator

Infrared Filter

USB Port

AV Output

SD Card Slot

10

11

12

13

14

15

16

17


Strap Hole

Battery House

Tripod Adapter

Power

Mode Button

Zoom Button

IR Button

Snap Button


PACKAGING DATA

LR-NV720P

Product

Dimension (WxHxD)

210x56x80mm

Net Weight (not including batteries)

430g

Package

Package

giftbox, instruction manual, EVA case or softbag, strap, cleaning cloth, USB cable, AV cable, Micro SD card (optional)

Box Dimension

224x141x82mm

Net Weight / Box

703g

Quantity / Master Carton

10pcs

Net Weight / Master Carton

7.03kgs

Gross Weight / Master Carton

9.03kgs

Dimension / Master Carton

555x305x275mm

OPTIONAL ACCESSORIES
