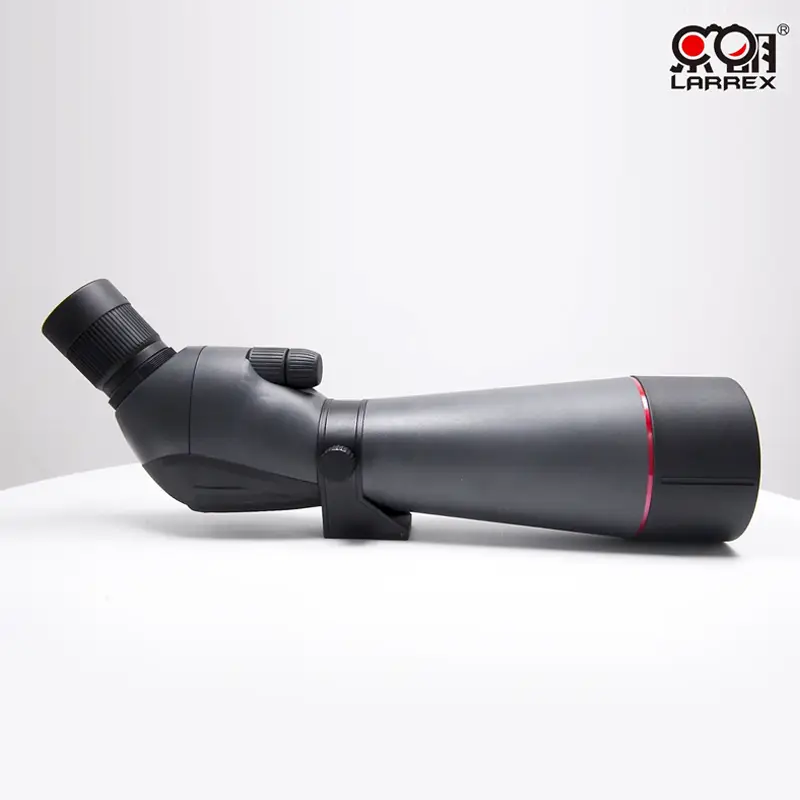

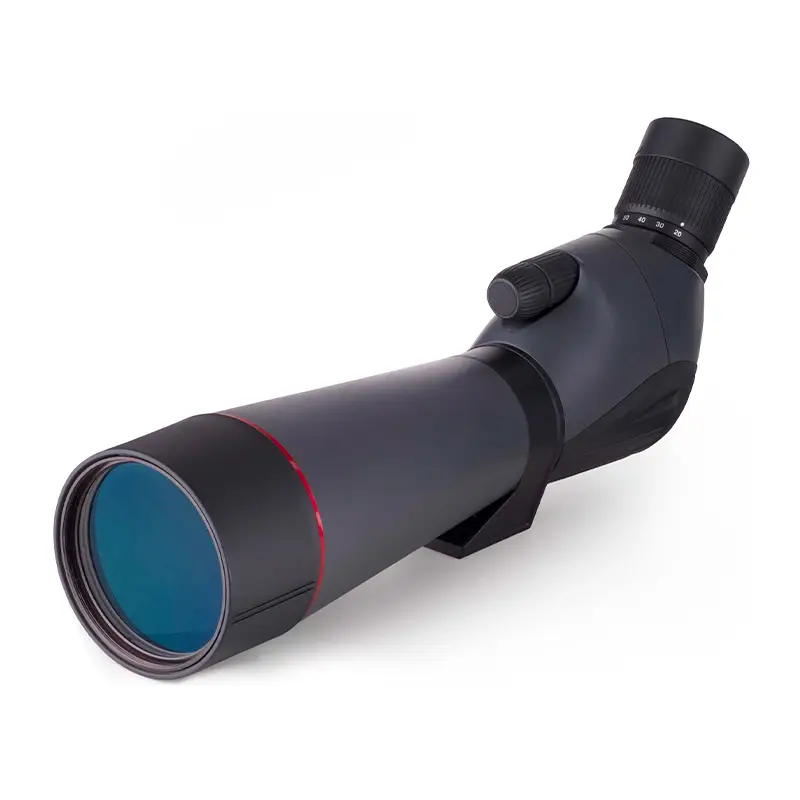

Spotting Scope-LR-NSP01AW 80

Product:

Spotting Scope

Item No.:

LR-NSP01AW 80

Model:

20-60x80

Regular Package:

corrugated box

Price Term:

EXW (FCA/FAS/FOB/CFR/CIF/CPT/CIP/DAT/DAP/DDU/DDP are also available.)

Payment Term:

30%~50% before production, 70%~50% before shipping

Payment Method:

T/T, L/C, Paypal

MOQ:

100pcs

Lead Time:

30-45days

Port of Loading:

main ports of China

Customization:

color, logo and package

Accessories:

dust caps on both eyepiece and objective lens, softbag with shoulder strap, cleaning cloth, stand or table tripod (optional), smart phone adapter (optional), bluetooth remote (optional)

Inquiry

Write a Review

* Angled Eyepiece: 45 degree angled eyepiece in ergonomic design allows more image.

* Zoom Magnification: Adjustable powerful 20X to 60X zoom magnification allows users to lock onto a target and zoom in for more details clearly.

* Wild Field of View: Wild field of view brings nature closer to you than ever.

* FMC Lenses and Coated Prism: Fully multi-coated lenses with ultra wide band coatings and coated roof prism increase light transmission and deliver bright, clear, high-contrast images even in low-light conditions.

* Dual Focus Wheel System: For long range viewing, dual focus wheel system enables fast and fine-tuning focus adjustment, allows users to lock onto a target and accurate for more details clearly.

* Angle Adjusting Knob: Angle adjusting knob allows rotation of the eyepiece to a sideways position, providing comfortable viewing angles.

* Adjustable Twist-up Eyecup: Adjustable eyecups twist up or down for comfortable viewing with or without eyeglasses.

* Built-in Sunshade: Compatible retractable sunshade on objective lens barrel reduces glare.

* Fully Waterproof and Fogproof: The fully waterproof and fogproof feature provides exceptional performance in the most rugged conditions.

* Non-slip and Shock-proof: Durable construction with high-quality rubber armor and rubber painting provides non-slip, shock-proof grip and durable external protection.

* Tripod: Come with tripod allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.

* Phone Adpater: An univeral phone adapter fits popular smart phones which is quicker and easier installed and removed. Make it easy to take videos and images in the distant world.

PRODUCT FUNCTIONS

Basic Functions	Coarse and Fine Focusing Adjustments	Optional Functions	Smart Phone Adapter
	Fine Left-right Tube Adjustment
	Kill Flash on Objective Part
	Fast Connection to A Tripod
	Fast Connection to A Smart Phone		Bluetooth Remote
	Waterproof-IPX7 (Nitrogen Filled)
	Fogproof
	Dustproof
	Shockproof

PRODUCT ADVANTAGES

OPTICAL PARAMETERS

Item No.	LR-NSP01AW 80	Field Of Angel	1.9~0.9°
Model	20-60x80	Apparent Field of Angle	38~54°
Magnification	20-60X	Field of View	33~16m/1000m
Clear Aperture	80mm	Exit Pupil	4~1.33mm
Ocular Lens Coating	FMC	Eye Relief	14~12mm
Objective Lens Coating	FMC	Brightness	16~1.8
Prism / Prism Coating	BAK4 / Yes	Near Focus	8m
Focus	Prism	Waterproof Grade	IPX7
Eyepiece Cup	Twist-up	Nitrogen Filled	Yes

PRODUCT DETAILS

1	2	3	4	5	6	7
Premium FMC Ocular Lens	Twist-up Eyepiece	Large FMC Objective Lens	Coarse and Fine Focus Rings	Kill Flash	Tube Left-right Adjustment	Tripod Mount

PACKAGING DATA

LR-NSP01AW 80
Product	Dimension (WxHxD)	411x138x97mm
Product	Net Weight	965g
Package	Package	giftbox, blister shell, regular case, instruction manual, cleaning cloth
	Box Dimension	514x116x217mm
	Quantity / Inner Carton	--
	Quantity / Master Carton	6pcs
	Net Weight / Master Carton	9.10kgs
	Gross Weight / Master Carton	10.56kgs
	Dimension / Master Carton	525x375x465mm
