* Straight Eyepiece: Straight viewing angle fits for viewing a horizontal target or looking down on a target.
* Zoom Magnification: Continuouse powerful zoom magnification 16X to 48X allows easy targeting and then zooming in for a closer and detailed look.
* Wild Field of View: Large field of view is perfect for observing nature and long-distance viewing.
* MC Lenses and Coated Prism: With ultra wide band coatings, fully multi-coated lenses and quality roof prism reveal every detail with optimum color and contrast.
* Dual Focus Wheel System: Dual focus wheel system has marco adjustment for rapid focus and micro adjustment for fine image.
* Angle Adjusting Knob: To rotate angle adjusting knob for comfortable viewing at any angle.
* Adjustable Twist-up Eyecup: Whether you wear glasses or not, adjustable eyecups allow you to comfortably enjoy the viewing.
* Built-in Sunshade: Retractable sun visor is built into the main lens barrel to reduce glare.
* Fully Waterproof and Fogproof: O-ring sealed for waterproof protection; nitrogen sealed to prevent fogging.
* Non-slip and Shock-proof: The ergonomical designed rubber armor and rubber painting make the spotting scope non-slip and shockproof, reliable in demanding conditions.
* Tripod: All-metal tripod hole can match any tripod, and ensures steady viewing in any situation.
* Phone Adpater: A professional phone adpater ensures stable views and easy photography and recording.
Basic Functions | Coarse and Fine Focusing Adjustments | Optional Functions | Smart Phone Adapter |
Fine Left-right Tube Adjustment | |||
Kill Flash on Objective Part | |||
Fast Connection to A Tripod | |||
Fast Connection to A Smart Phone | Bluetooth Remote | ||
Waterproof-IPX7 (Nitrogen Filled) | |||
Fogproof | |||
Dustproof | |||
Shockproof |

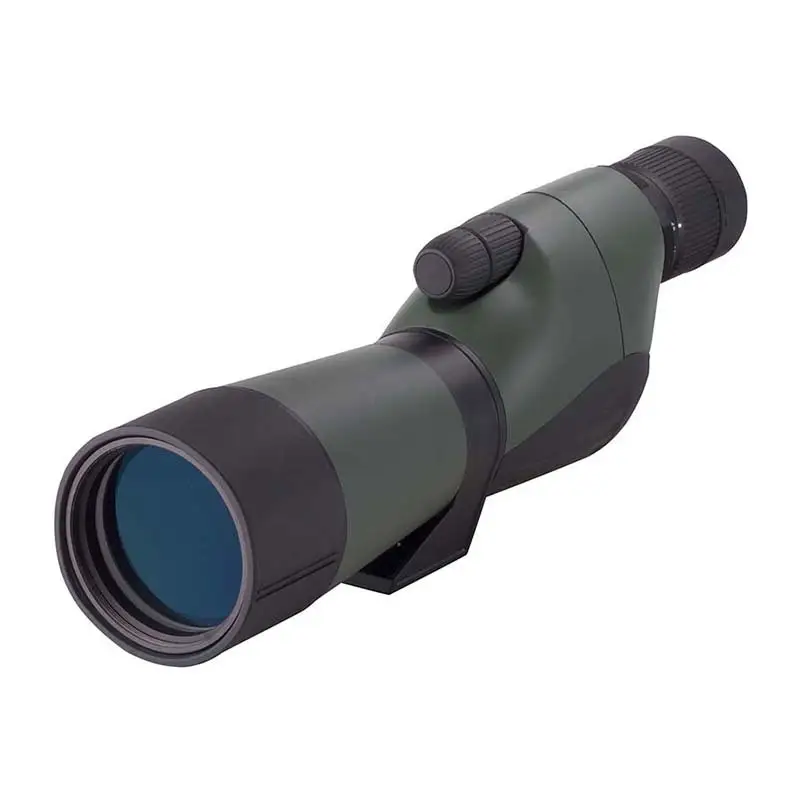

Item No. | LR-NSP02SW 65 | Field Of Angel | 2.3~1.1° |
Model | 16-48x65 | Apparent Field of Angle | 36.8~52.8° |
Magnification | 16-48X | Field of View | 40~19m/1000m |
Clear Aperture | 65mm | Exit Pupil | 4.06~1.35mm |
Ocular Lens Coating | FMC | Eye Relief | 14~12mm |
Objective Lens Coating | FMC | Brightness | 16.5~1.8 |
Prism / Prism Coating | BAK4 / Yes | Near Focus | 6m |
Focus | Prism | Waterproof Grade | IPX7 |
Eyepiece Cup | Twist-up | Nitrogen Filled | Yes |
1 | 2 | 3 | 4 | 5 | 6 | 7 |
Premium FMC Ocular Lens | Twist-up Eyepiece | Large FMC Objective Lens | Kill Flash | Carse and Fine Focus Rings | Tube Left-right Adjustment | Tripod Mount |
LR-NSP02SW 65 | ||
Product | Dimension (WxHxD) | 340x93x84mm |
Net Weight | 770g | |
Package | Package | giftbox, blister shell,regular case, instruction manual, cleaning cloth |
Box Dimension | 370x90x170mm | |
Quantity / Inner Carton | -- | |
Quantity / Master Carton | 10pcs | |
Net Weight / Master Carton | 11.10kgs | |
Gross Weight / Master Carton | 12.30kgs | |
Dimension / Master Carton | 390x470x370mm | |
