* Angled Eyepiece: 45 degree viewing angle offers a more comfortable viewing feeling for target observation.
* Zoom Magnification: Features a powerful zoom range of adjustable 16X to 48X magnification to make it easy to narrow the distance between ursers and a target.
* Wild Field of View: Wild field of view is the perfect choice for looking to get an extremely clear view of distant objects.
* FMC Lenses and Coated Prism: Superior fully multi-coated lenses with ultra wide band coatings and coated roof prism provide bright, true to life colors.
* Dual Focus Wheel System: Focus on a subject quickly, then fine tune the image using the dual focus mechanism with course and fine adjustments.
* Angle Adjusting Knob: Angle adjusting knob allows rotation of the eyepiece to a sideways position, providing comfortable viewing angles.
* Adjustable Twist-up Eyecup: Adjustable eyecups twist up or down for comfortable viewing with or without eyeglasses.
* Built-in Sunshade: To pull out built-in sunshade on main sighting scope barrel to help reducing glare.
* Fully Waterproof and Fogproof: The fully waterproof and fogproof design of the spotting scope is perfect for observing the target in rainy and foggy days.
* Non-slip and Shock-proof: Non-Slip and shock-proof finish can avoid being damaged caused by sudden environmental changes

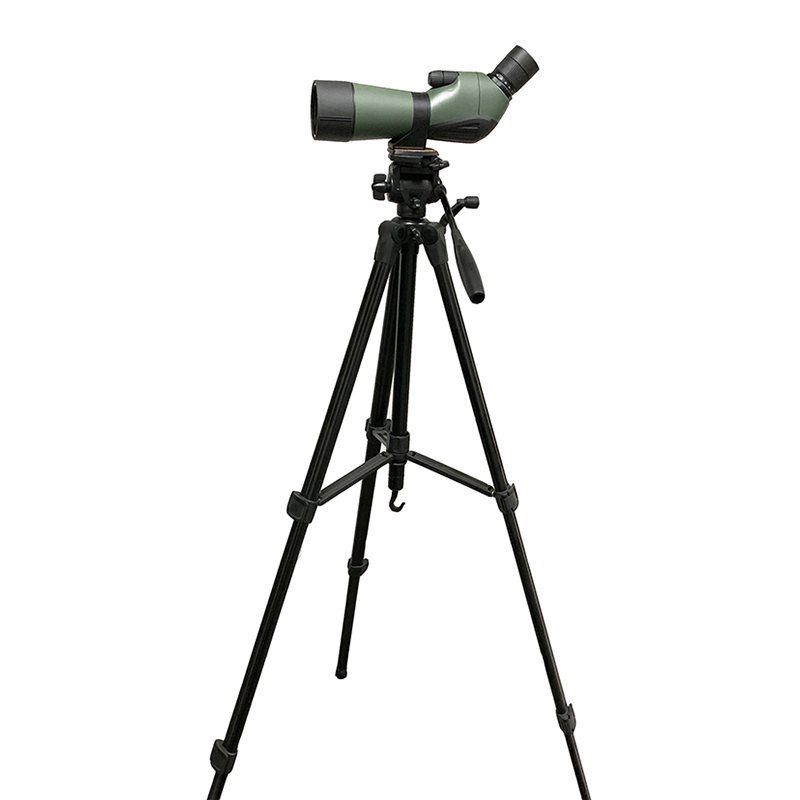

* Tripod: Come with tripod allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.

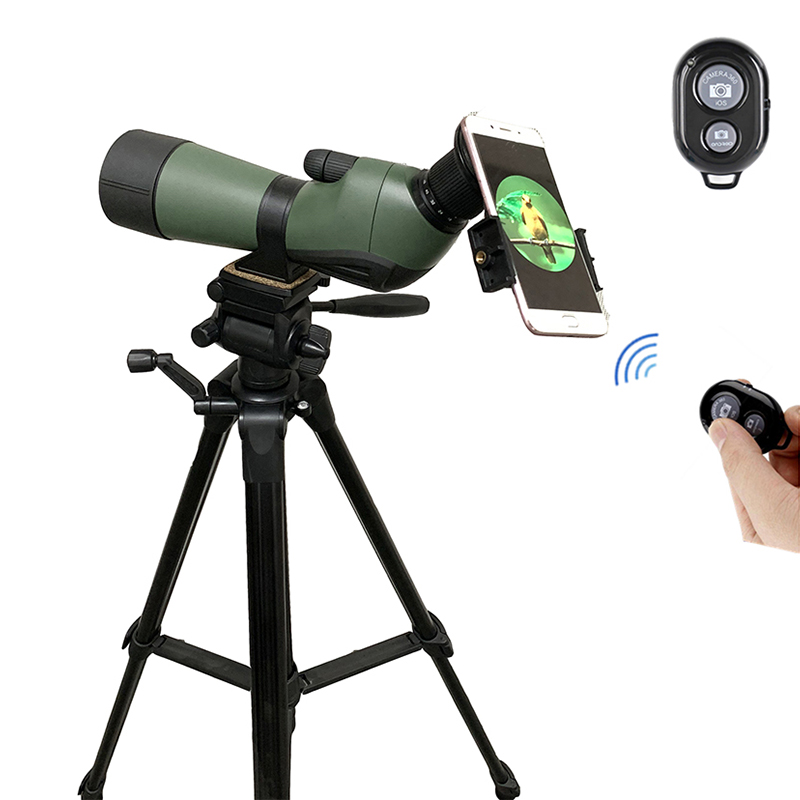

* Phone Adpater: An univeral phone adapter fits popular smart phones which is quicker and easier installed and removed. Make it easy to take videos and images in the distant world.
Basic Functions | Coarse and Fine Focusing Adjustments | Optional Functions | Smart Phone Adapter |
Fine Left-right Tube Adjustment | |||
Kill Flash on Objective Part | |||
Fast Connection to A Tripod | |||
Fast Connection to A Smart Phone | Bluetooth Remote | ||
Waterproof-IPX7 (Nitrogen Filled) | |||
Fogproof | |||
Dustproof | |||
Shockproof |
Item No. | LR-NSP02AW 65 | Field Of Angel | 2.3~1.1° |
Model | 16-48x65 | Apparent Field of Angle | 36.8~52.8° |
Magnification | 16-48X | Field of View | 40~19m/1000m |
Clear Aperture | 65mm | Exit Pupil | 4.06~1.35mm |
Ocular Lens Coating | FMC | Eye Relief | 14~12mm |
Objective Lens Coating | FMC | Brightness | 16.5~1.8 |
Prism / Prism Coating | BAK4 / Yes | Near Focus | 6m |
Focus | Prism | Waterproof Grade | IPX7 |
Eyepiece Cup | Twist-up | Nitrogen Filled | Yes |
1 | 2 | 3 | 4 | 5 | 6 | 7 |
Premium FMC Ocular Lens | Twist-up Eyepiece | Large FMC Objective Lens | Kill Flash | Carse and Fine Focus Rings | Tube Left-right Adjustment | Tripod Mount |
LR-NSP02AW 65 | ||
Product | Dimension (WxHxD) | 335x138x84mm |
Net Weight | 770g | |
Package | Package | giftbox, blister shell, regular case, instruction manual, cleaning cloth |
Box Dimension | 370x90x170mm | |
Quantity / Inner Carton | -- | |
Quantity / Master Carton | 10pcs | |
Net Weight / Master Carton | 11.10kgs | |
Gross Weight / Master Carton | 12.30kgs | |
Dimension / Master Carton | 390x470x370mm | |
